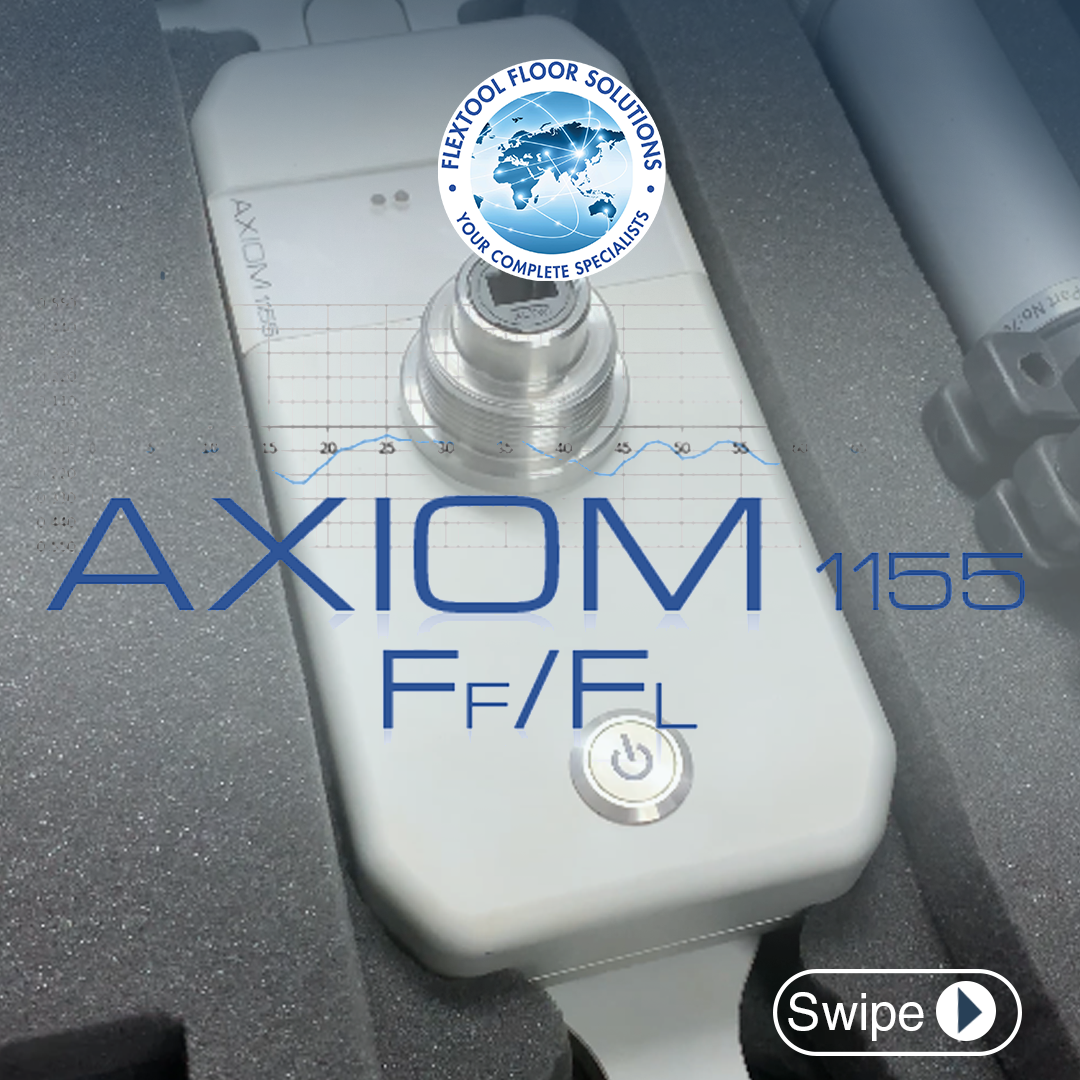

With the Contractor in mind the Axiom 1155 floor profiler from the Somero Matson Group brings both simplicity and ease of use to the forefront in its compact, lightweight, and robust design.

Built on the Android operating system, the Axiom 1155’s Measurement and Layout Companion apps can be used with a Bluetooth enabled Android phone or tablet of choice. The average user now has the ability and guidance to reliably and precisely test floors in accordance with the latest ASTM E1155 and TR-34 standards, or test joint stability (Deflection) in accordance with ACI 360R-10 section 6.2.

Upon completion of the test, the Measurement app then allows the user to send the results immediately from the Cellular or WiFi connected Android phone / tablet to any and all interested parties for review of the direct CSV file. The results file can also be imported into the Axiom Desktop Report Generator where the user can quickly create professional customizable site reports for dissemination to customers.

FEATURES

•  Multi Purpose Platform: FF/FL and TR-34 Floor Profiler or Deflection Meter
•  Instantly shareable data with real-time results
•  Automatic report generators
•  System Accuracy: +/- 0.0015 inch/foot
•  Dual axis inclinometer technology for stability control and enhanced repeatability
•  Collapsible and detachable hardware for easy transport and travel
•  Manufactured with lightweight and durable alloys
•  Internal Sensors are rated to withstand a 9’ drop
•  ASTM E1155-14, ASTM E1155M-14, TR-34 and ACI 360R-10 Section 6.2 compliant
•  Android operating system
•  Rated for 25 hours of continuous use powered with 6 AA batteries
•  Ability to delete a point taken by mistake during the measurement process
